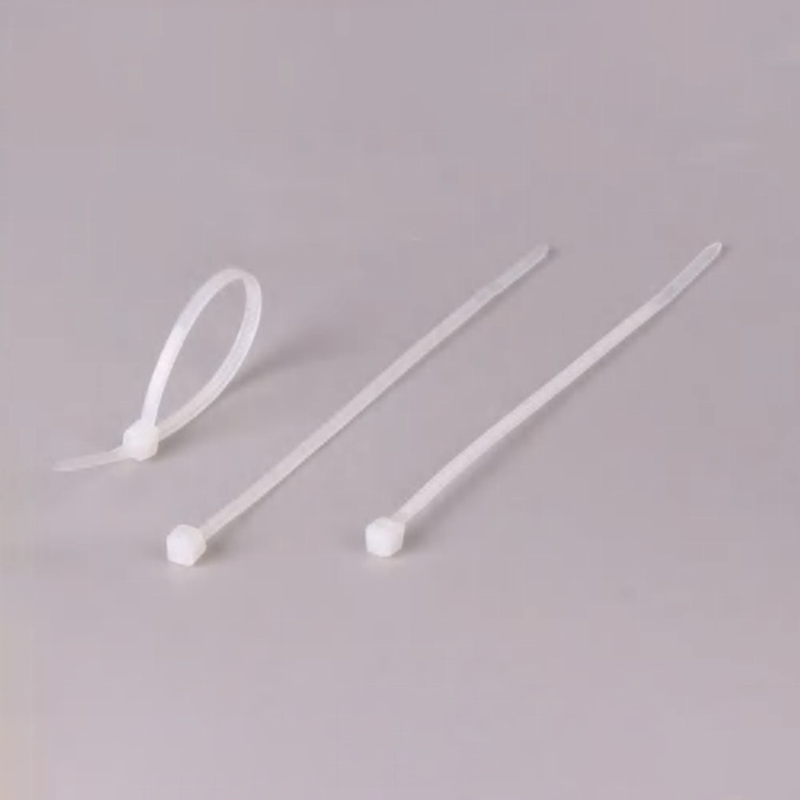

Self-Locking Nylon Cable Tie
Self-Locking Nylon Cable Tie
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Tax included.
Couldn't load pickup availability
[Material] UL Approved Nylon 66,94v-2 Heat-resisting.Acid&erosion control .insulating well and not apt to age.
[Working Temperature] -40C-85C
[Installation Temperature] -20°C-85°C

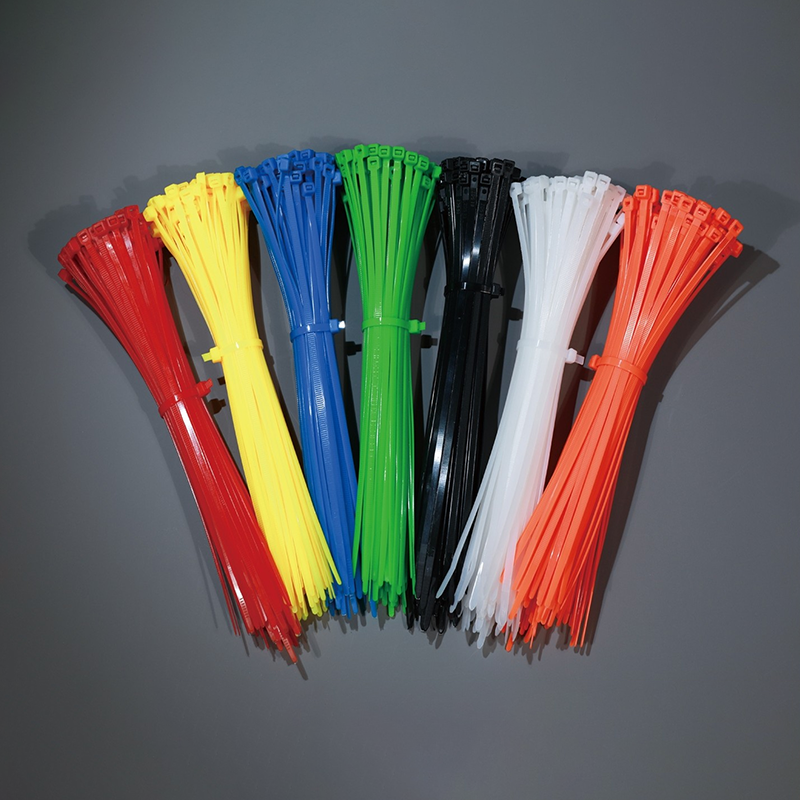

[Color] Natural.black.UV black .other colors are available as requested.
| ITEM.NO. | Length | Width | Max.Bundle Dia.E(mm) | Min.Loop.Tensile Strength | ||
| INCH | MM | LBS | KGS | |||
| ZDS-3x80 | 3 3/16" | 80 | 2.5 | 16 | 18 | 8 |
| ZDS-3x100 | 4" | 100 | 2.5 | 22 | 18 | 8 |
| ZDS-3x120 | 4 3/4" | 120 | 2.5 | 28 | 18 | 8 |
| ZDS-3x150 | 6” | 150 | 2.5 | 35 | 18 | 8 |
| ZDS-3x160 | 6 1/4" | 160 | 2.5 | 40 | 18 | 8 |
| ZDS-3x180 | 7” | 180 | 2.5 | 44 | 18 | 8 |
| ZDS-3x200 | 8” | 200 | 2.5 | 53 | 18 | 8 |
| ZDS-4x100 | 4" | 100 | 3.6 | 22 | 40 | 18 |
| ZDS-4x120 | 4 3/4" | 120 | 3.6 | 30 | 40 | 18 |
| ZDS-4x150 | 6” | 150 | 3.6 | 35 | 40 | 18 |
| ZDS-4x180 | 7” | 180 | 3.6 | 44 | 40 | 18 |
| ZDS-4x200 | 8” | 200 | 3.6 | 53 | 40 | 18 |
| ZDS-4x250 | 10" | 250 | 3.6 | 65 | 40 | 18 |
| ZDS-4x300 | 12” | 300 | 3.6 | 80 | 40 | 18 |
| ZDS-4x350 | 14" | 350 | 3.6 | 98 | 40 | 18 |
| ZDS-4x370 | 14 1/2" | 370 | 3.6 | 108 | 40 | 18 |
| ZDS-4x400 | 16” | 400 | 3.6 | 115 | 40 | 18 |
| ZDS-5x120 | 4 3/4" | 120 | 4.8 | 26 | 50 | 22 |
| ZDS-5x160 | 6 1/4" | 160 | 4.8 | 39 | 50 | 22 |
| ZDS-5x180 | 7” | 180 | 4.8 | 46 | 50 | 22 |
| ZDS-5x200 | 8" | 200 | 4.8 | 53 | 50 | 22 |
| ZDS-5x250 | 10” | 250 | 4.8 | 65 | 50 | 22 |
| ZDS-5x280 | 11” | 280 | 4.8 | 70 | 50 | 22 |
| ZDS-5x300 | 12” | 300 | 4.8 | 82 | 50 | 22 |
| ZDS-5x350 | 14" | 350 | 4.8 | 90 | 50 | 22 |
| ZDS-5x380 | 14 1/2" | 380 | 4.8 | 105 | 50 | 22 |
| ZDS-5x400 | 16” | 400 | 4.8 | 108 | 50 | 22 |
| ZDS-5x450 | 18” | 450 | 4.8 | 130 | 50 | 22 |
| ZDS-5x500 | 20” | 500 | 4.8 | 150 | 50 | 22 |
| ZDS-5x550 | 22” | 550 | 4.8 | 170 | 5 | 22 |
| ZDS-5x600 | 24” | 600 | 4.8 | 1902 | 5 | 22 |
| ZDS-7x200 | 8" | 200 | 7 | 50 | 85 | 38 |
| ZDS-7x250 | 10” | 250 | 7 | 63 | 85 | 38 |
| ZDS-7x300 | 12” | 300 | 7 | 80 | 85 | 38 |
| ZDS-7x350 | 14" | 350 | 7 | 90 | 85 | 38 |
| ZDS-7x380 | 14 1/2" | 380 | 7 | 98 | 85 | 38 |
| ZDS-7x400 | 16” | 400 | 7 | 105 | 85 | 38 |
| ZDS-7x450 | 18” | 450 | 7 | 125 | 85 | 38 |
| ZDS-7x500 | 20” | 500 | 7 | 145 | 85 | 38 |
| ZDS-7x550 | 22” | 550 | 7 | 170 | 85 | 38 |
| ZDS-8x200 | 8" | 200 | 7.6 | 50 | 120 | 55 |
| ZDS-8x250 | 10” | 250 | 7.6 | 63 | 120 | 55 |
| ZDS-8x300 | 12” | 300 | 7.6 | 80 | 120 | 55 |
| ZDS-8x350 | 14" | 350 | 7.6 | 90 | 120 | 55 |
| ZDS-8x380 | 14 1/2" | 380 | 7.6 | 98 | 120 | 55 |
| ZDS-8x400 | 16” | 400 | 7.6 | 105 | 120 | 55 |
| ZDS-8x450 | 18” | 450 | 7.6 | 25 | 120 | 55 |
| ZDS-8x500 | 20” | 500 | 7.6 | 145 | 120 | 55 |
| ZDS-8x600 | 24" | 600 | 7.6 | 170 | 120 | 55 |
| ZDS-9x400 | 16” | 400 | 8.8 | 105 | 175 | 80 |
| ZDS-9x450 | 18” | 450 | 8.8 | 120 | 175 | 80 |
| ZDS-9x500 | 20” | 500 | 8.8 | 140 | 175 | 80 |
| ZDS-9x550 | 22” | 550 | 8.8 | 160 | 175 | 80 |
| ZDS-9x600 | 24" | 600 | 8.8 | 170 | 175 | 80 |
| ZDS-9x650 | 26” | 650 | 8.8 | 190 | 175 | 80 |
| ZDS-9x700 | 28” | 700 | 8.8 | 205 | 175 | 80 |
| ZDS-9x760 | 30” | 760 | 8.8 | 225 | 175 | 80 |
| ZDS-9x800 | 32” | 800 | 8.8 | 243 | 175 | 80 |
| ZDS-9x920 | 36" | 900 | 8.8 | 265 | 175 | 80 |
| ZDS-9x1020 | 40° | 1020 | 8.8 | 295 | 175 | 80 |
| ZDS-9x1200 | 48" | 1200 | 8.8 | 310 | 175 | 80 |
| ZDS-9x1500 | 60" | 1500 | 8.8 | 365 | 175 | 80 |
| ZDS-12x600 | 24" | 600 | 12 | 180 | 250 | 114 |
| ZDS-15x200 | 8" | 200 | 15 | 45 | 300 | 132 |
| ZDS-15x300 | 12” | 300 | 15 | 70 | 300 | 132 |
